RF-300CA-14270
DC Low current Motor
RF-300CA series are low current
small dc motors. Main features of RF-300CA motors include: Precious metal brush,
3-slot Armature, 3-bar Commutator, Plastic-insulated sheet rotors, Plastic
core commutator, Stainless steel shaft, Class B winding wire, Zinc coated steel
housing, Metal end cap, Rubber magnet, Oil-impregnated Bearing and buit-in
varistor. Each motor has two connection wires, 15 cm long, and 5mm stripped and
tinned at the ends. The shaft is 2 mm
in diameter and 10 mm in length. Operates with one or two AA batteries.
Price and Availability |
| Type: |
RF-300CA-14270 |
| Product Name: |
DC micro motor |
|
Description: |
Metal-brush motors for
Motorized Toys / Motorized car mirrors, robots, CD
players and more.
OUTPUT:0.06W-0.3W (APPROX)
WEIGHT: 21g (APPROX)
CD Micro
motors are also known as hobby motors, Miniature DC
motors, and Small DC motors. |
|
Applications: Electronic toys
motors,
Hobby motors, technology education kits and projects, CD Drives, DVD
Drives, Car mirrors.
Images of small DC motors
are linked to the price and availability. |
Specifications of
RF-300CA-14270:
-
Operating Voltage: 1.0 ~ 3.0 V
DC
-
Operating Temperature: -10°C
to +60°C
-
Storage Temperature: -20°C to
+70°C
-
Rated Voltage: 1.9 V DC
-
No Load Speed: 3500 °10%
-
No Load Current: 32 mA (60ma
Max)
-
Torque: 4.0 g-cm (at maximum
efficiency)
-
Speed: 2713 ±10% rpm (at
maximum efficiency)
-
Current: 110 mA (165mA Max)
(at maximum efficiency)
-
Stall Torque: 18.0 g-cm
-
Stall Current: 380 mA
-
Insulation Resistance: ≥ 1 MΩ
100VDC
-
Direction of Rotation:
Clockwise

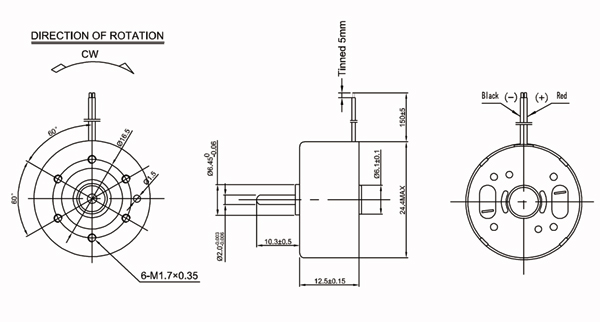

Outline of RF-300CA motors:
We can supply up to 30,000
RF-300CA per month.
|
